Fat Drum / Higher Lift Wire Rope Hoist


Fat drum : Give higher lifts in small lengths

LH/RH (4/2 falls) grooves on drum : Gives true vertical lifts

Fails safe disc/ shoe brake : Trouble free operation and ease of adjustment

Precision machine cut case hardened alloy steel gears : Long life noise less operation

Geared coupling : Better transmission

Compact design : Best suited for cranes & higher lift application
Truly Modular constructor : Easily accessible separates break, motor, drum, gears box & panel unit
Manufactured in ISO 9001:2000 certified company : Assured quality and inter changeability  of parts

Request

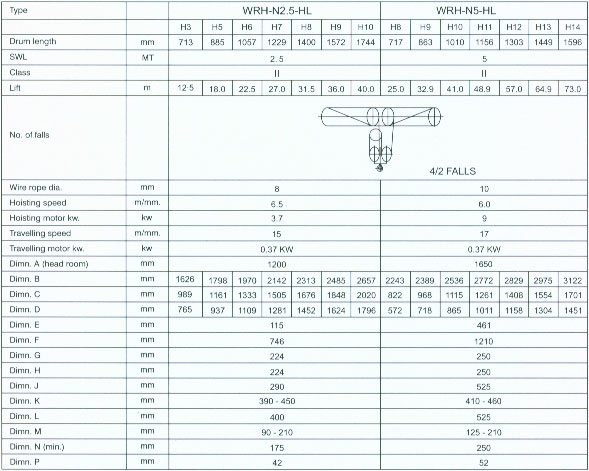

Specification
Note :
1 Shoe break for hoist motion can be given at extra cost & dimension ‘E’ will increase by 200mm
2 Trolley break can be supplied at extra cost dimension ‘K’ will increased by 125 mm.
3 13,26 mpm trollies also can be supplied (Single reduction gear box)
4 2,2.8,4,8,9 mpm trollies also can be supplied (double reduction gear box) at extra
  cost and ‘K’ dimension will increase by 46 mm
