Chain Electric Hoist
Model – HC

Manufactured in ISO 9001:2000 certified company : Assured quality and interchangeability of parts

Rugged European Design : Assured reliability

Overload Slipping clutch : Safety assured

Compact Aluminum alloy cast body : Light weight precision engineered

Anti corrosive powder coated finish : Better aesthetics
Imported Grade 80 surface hardened load chain for strength & ware resistance : Longer chain life

Built in electrical control panel : Ready to use
Ergonomically designed pendent control : Easy to usages
Swiveling bottom block : Free rotation handling of loads
Precision machine cuts case hardened alloy steel gears and load chain wheel : Long life, noiseless
  operation
Request
Add on features

Remote control, VVVF drive, special lower blocks, PLC.

Multiple hoist tendom automated operation

Technical specification for indef-HC chain electrical hoist

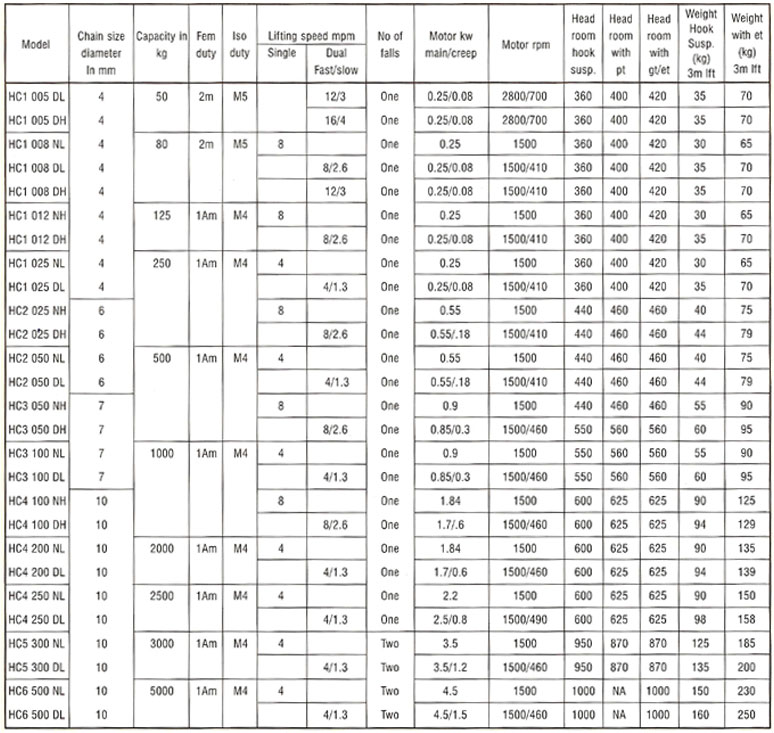

Chain Electric Hoist Specification


Note : Hoisting speeds are changes on various models by changing any of the parameters/ combination of parameters

i.e. motor rpm, no. of falls, gears box reduction ration.

Key abbreviations used in model are:
H-height hoisting speed (8 & above) N- single speed (Normal speed)
L- Low hoisting speed (4 & below) D- Dual speed.
All Dimensions in mm. Data is subjected to change without prior notice.
